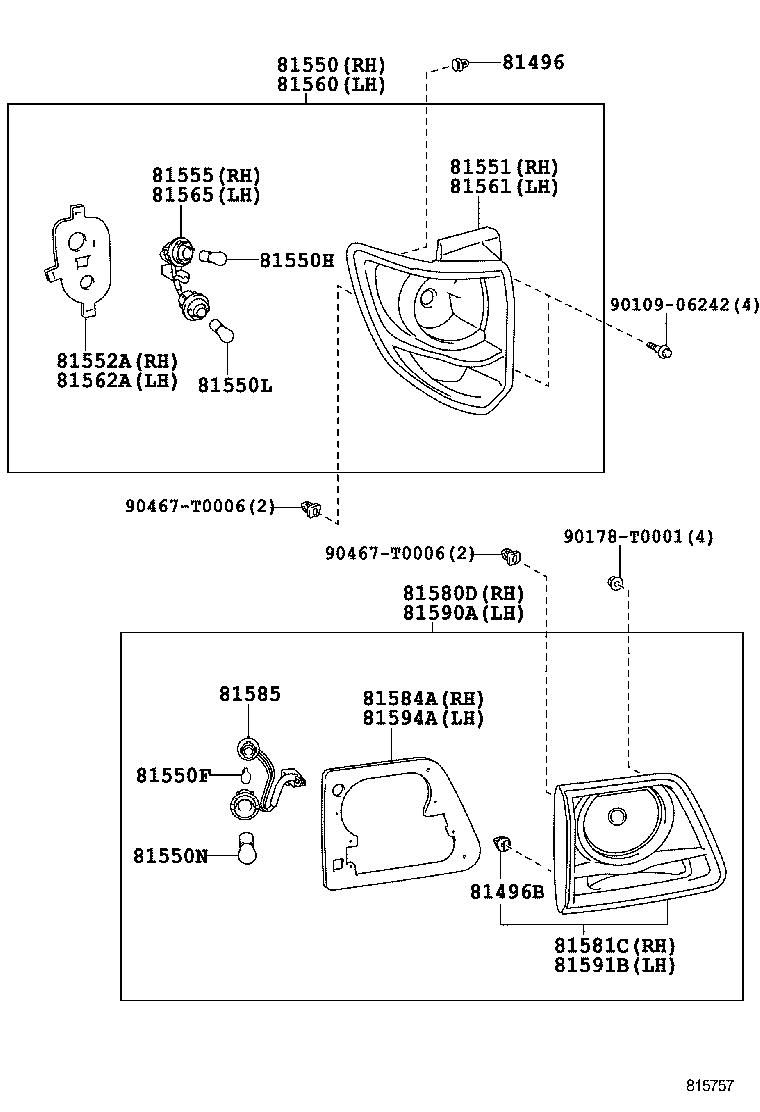

سیستم برقی مجموعه لامپ عقب
ماشین toyota fortuner
سال تولید: 2009
کد مدل: TGN51L-EKPSKV
مدل: Fortuner SR - TGN51L-EKPSKV
کد موتور: 2TRFE
نوع موتور: 2700CC 16-VALVE DOHC EFI
گیربکس: ATM, 4-SPEED FLOOR SHIFT
شماره قطعه:
814960K030
نام
قطعه: GUIDE, REAR COMBINATION LAMP
Prod date: 20110799999907/2011-
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
شماره قطعه:
814960K010
نام
قطعه: GUIDE, REAR LAMP
Prod date: 20110799999907/2011-
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
شماره قطعه:
815500K190
نام
قطعه: LAMP ASSY, REAR COMBINATION, RH
12.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN51..LHD..SASUV;KUN61..4FC..(IND, TH);KUN60,TGN61..IDSUV..(GCC,GEN);LAN50,TGN51..RHD..SUVW..(IDN,SA);KUN60,TGN61..SU VW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA,PKN;KUN51..(ID SUV,SUVW,THSUV)..(4FC,5F)..(CO,GEN,LA,TH) *299
شماره قطعه:
9913212050
نام
قطعه: BULB, ROOM LAMP, NO.2
Prod date: 20150899999908/2015-
Models: ZWA10..B
12V 5W
QTY: 01
Models: ZWA10..B
12V 5W
QTY: 01
شماره قطعه:
9913221210
نام
قطعه: BULB, TAIL & STOP LAMP
Prod date: 20110799999907/2011-
Models: KUN26..4FC..IV3;GGN15,25,35,KUN10,36,LAN15,25,35,TGN10,11,15,26..DLX,SR;KUN15,16,2
#,35,TGN16,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)..CBU
QTY: 02
Models: KUN26..4FC..IV3;GGN15,25,35,KUN10,36,LAN15,25,35,TGN10,11,15,26..DLX,SR;KUN15,16,2
#,35,TGN16,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)..CBU
QTY: 02
شماره قطعه:
9098115009
نام
قطعه: BULB(FOR REAR COMBINATION LAMP)
Prod date: 19970820020308/1997-03/2002
Models: LN167,192,RZN147..SCB..(CBR,DEFI)..SA;KZN165,190,LN140,145,RZN142,169,194..(DCB,SC
B)..SA
12V 21W,AMBER,TURN SIGNAL
QTY: 02
Models: LN167,192,RZN147..SCB..(CBR,DEFI)..SA;KZN165,190,LN140,145,RZN142,169,194..(DCB,SC
B)..SA
12V 21W,AMBER,TURN SIGNAL
QTY: 02
شماره قطعه:
9913211210
نام
قطعه: BULB, BACK UP LAMP
Prod date: 20110720150407/2011-04/2015
Models: TGN16..DCB..5F..GCC;TGN11,15,26..5F..GCC;TGN16..4FC..DLX..GCC;TGN16..SCB..DLX..GCC
..CBU
12V 21W,IRAN SPEC
QTY: 01
Models: TGN16..DCB..5F..GCC;TGN11,15,26..5F..GCC;TGN16..4FC..DLX..GCC;TGN16..SCB..DLX..GCC
..CBU
12V 21W,IRAN SPEC
QTY: 01
شماره قطعه:
815510K190
نام
قطعه: LENS, REAR COMBINATION LAMP, RH
07.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN51..LHD..SASUV;KUN61..4FC..(IND, TH);KUN60,TGN61..IDSUV..(GCC,GEN);LAN50,TGN51..RHD..SUVW..(IDN,SA);KUN60,TGN61..SU VW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA,PKN;KUN51..(ID SUV,SUVW,THSUV)..(4FC,5F)..(CO,GEN,LA,TH)
شماره قطعه:
815520K190
نام
قطعه: GASKET, REAR COMBINATION LAMP, RH
07.2011 - 10.2015 KUN51..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..RHD..(IDSUV,SASUV);KUN5 1..LHD..IDSUV..(GEN,PHL);GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
شماره قطعه:
815550K190
نام
قطعه: SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
Prod date: 20110799999907/2011-
Models: KUN51..LHD..SASUV;GGN50,60,KUN5#,6#,LAN50,TGN51,61..IDSUV,SUVW,THSUV
QTY: 01
Models: KUN51..LHD..SASUV;GGN50,60,KUN5#,6#,LAN50,TGN51,61..IDSUV,SUVW,THSUV
QTY: 01
شماره قطعه:
815600K200
نام
قطعه: LAMP ASSY, REAR COMBINATION, LH
12.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN51..LHD..SASUV;KUN61..4FC..(IND, TH);KUN60,TGN61..IDSUV..(GCC,GEN);LAN50,TGN51..RHD..SUVW..(IDN,SA);KUN60,TGN61..SU VW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA,PKN;KUN51..(ID SUV,SUVW,THSUV)..(4FC,5F)..(CO,GEN,LA,TH) *299
شماره قطعه:
8156071040
نام
قطعه: LAMP ASSY, REAR COMBINATION, LH
12.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN51..LHD..SASUV;KUN61..4FC..(IND, TH);KUN60,TGN61..IDSUV..(GCC,GEN);LAN50,TGN51..RHD..SUVW..(IDN,SA);KUN60,TGN61..SU VW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA,PKN;KUN51..(ID SUV,SUVW,THSUV)..(4FC,5F)..(CO,GEN,LA,TH) *300
شماره قطعه:
815610K200
نام
قطعه: LENS, REAR COMBINATION LAMP, LH
07.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN51..LHD..SASUV;KUN61..4FC..(IND, TH);KUN60,TGN61..IDSUV..(GCC,GEN);LAN50,TGN51..RHD..SUVW..(IDN,SA);KUN60,TGN61..SU VW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA,PKN;KUN51..(ID SUV,SUVW,THSUV)..(4FC,5F)..(CO,GEN,LA,TH)
شماره قطعه:
815520K190
نام
قطعه: GASKET, REAR COMBINATION LAMP, RH
07.2011 - 10.2015 KUN51..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..RHD..(IDSUV,SASUV);KUN5 1..LHD..IDSUV..(GEN,PHL);GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
شماره قطعه:
815550K190
نام
قطعه: SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
Prod date: 20110799999907/2011-
Models: KUN51..LHD..SASUV;GGN50,60,KUN5#,6#,LAN50,TGN51,61..IDSUV,SUVW,THSUV
QTY: 01
Models: KUN51..LHD..SASUV;GGN50,60,KUN5#,6#,LAN50,TGN51,61..IDSUV,SUVW,THSUV
QTY: 01
شماره قطعه:
815800K030
نام
قطعه: LAMP ASSY, REAR, RH
12.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN61..4FC..(IND,TH);KUN60,TGN61..I DSUV..(GCC,GEN);KUN51..(4FC,5F)..(CO,GEN,LA,TH);LAN50,TGN51..RHD..SUVW..(IDN,SA);K UN60,TGN61..SUVW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA, PKN *299
شماره قطعه:
8158071020
نام
قطعه: LAMP ASSY, REAR, RH
12.2011 - ... TGN51..5F..SA;KUN51..LHD..5FC;KUN51..SUVW..PHL;KUN61..4FC..(IND,TH);KUN60,TGN61..I DSUV..(GCC,GEN);KUN51..(4FC,5F)..(CO,GEN,LA,TH);LAN50,TGN51..RHD..SUVW..(IDN,SA);K UN60,TGN61..SUVW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,60,TGN51..ANCOM,CO,GCC,GEN,KZS,LA, PKN *300
شماره قطعه:
815810K030
نام
قطعه: LENS AND BODY, REAR LAMP, RH
07.2011 - 10.2015 KUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..IDSUV..(GEN,LA);G GN50,KUN60,TGN51,61..IDSUV..(GCC,GEN)
شماره قطعه:
815840K030
نام
قطعه: GASKET, REAR LAMP RH
Prod date: 20110720151007/2011-10/2015
Models: KUN51..IDSUV;KUN51..(5F,5FC)..CO;KUN51..SUVW..(LA,SA);GGN50,TGN51,61..CO,LA;GGN50,
KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
QTY: 01
Models: KUN51..IDSUV;KUN51..(5F,5FC)..CO;KUN51..SUVW..(LA,SA);GGN50,TGN51,61..CO,LA;GGN50,
KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
QTY: 01
شماره قطعه:
815850K030
نام
قطعه: SOCKET & WIRE, REAR LAMP
Prod date: 20110799999907/2011-
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
Models: GGN50,60,KUN5#,6#,LAN50,TGN51,61
QTY: 02
شماره قطعه:
815900K030
نام
قطعه: LAMP ASSY, REAR, LH
12.2011 - 10.2015 KUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..IDSUV..(GEN,LA);G GN50,KUN60,TGN51,61..IDSUV..(GCC,GEN) *299
شماره قطعه:
8159071020
نام
قطعه: LAMP ASSY, REAR, LH
12.2011 - 10.2015 KUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..IDSUV..(GEN,LA);G GN50,KUN60,TGN51,61..IDSUV..(GCC,GEN) *300
شماره قطعه:
815910K030
نام
قطعه: LENS AND BODY, REAR LAMP, LH
07.2011 - 10.2015 KUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..IDSUV..(GEN,LA);G GN50,KUN60,TGN51,61..IDSUV..(GCC,GEN)
شماره قطعه:
815840K030
نام
قطعه: GASKET, REAR LAMP RH
Prod date: 20110720151007/2011-10/2015
Models: KUN51..IDSUV;KUN51..(5F,5FC)..CO;KUN51..SUVW..(LA,SA);GGN50,TGN51,61..CO,LA;GGN50,
KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
QTY: 01
Models: KUN51..IDSUV;KUN51..(5F,5FC)..CO;KUN51..SUVW..(LA,SA);GGN50,TGN51,61..CO,LA;GGN50,
KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)
QTY: 01
