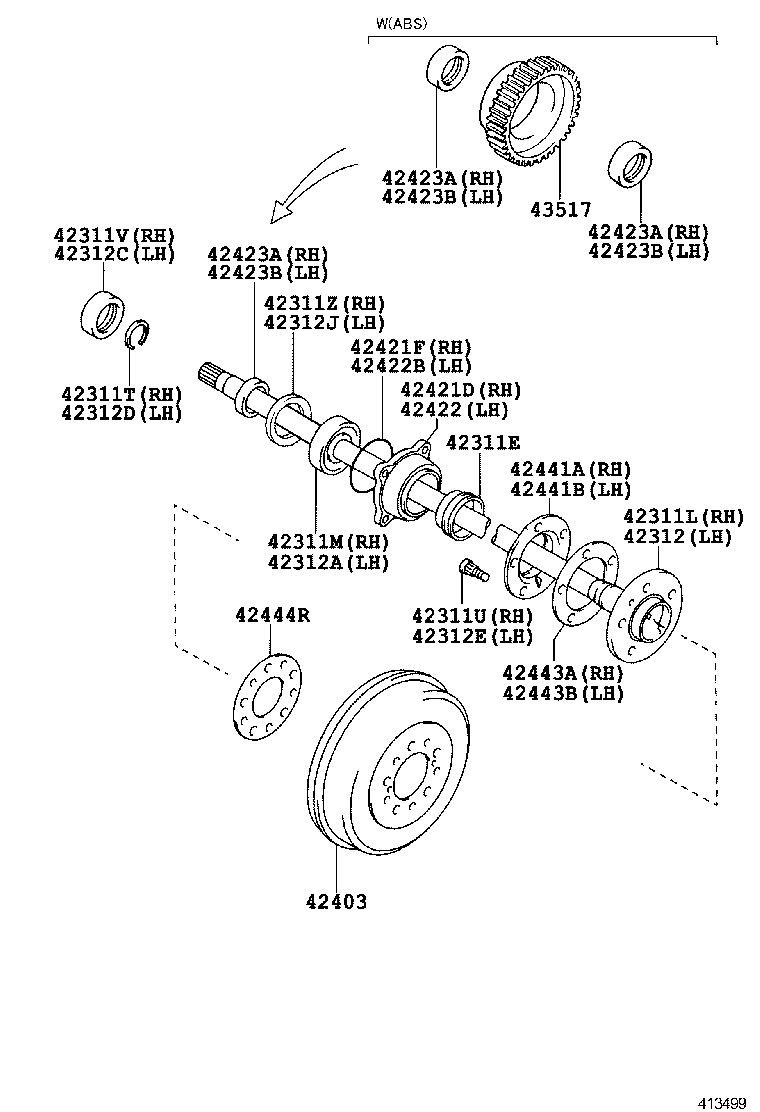

Powertrain / Chassis مجموعه طبق و سگدست عقب ماشین toyota fortuner
سال تولید: 2009
کد مدل: TGN51L-EKPSKV
مدل: Fortuner SR - TGN51L-EKPSKV
کد موتور: 2TRFE
نوع موتور: 2700CC 16-VALVE DOHC EFI
گیربکس: ATM, 4-SPEED FLOOR SHIFT
شماره قطعه:
90313T0002
نام
قطعه: SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 02
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 02
شماره قطعه:
423110K090
نام
قطعه: SHAFT, REAR AXLE, RH
Prod date: 20140820150408/2014-04/2015
Models: TGN26..SCB..GCC
ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 01
Models: TGN26..SCB..GCC
ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 01
شماره قطعه:
90366T0044
نام
قطعه: BEARING (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC
,GEN,IDN,LA,MA,PHL,TH)
QTY: 01
Models: GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC
,GEN,IDN,LA,MA,PHL,TH)
QTY: 01
شماره قطعه:
90520T0033
نام
قطعه: RING, SNAP (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
9094202079
نام
قطعه: BOLT, HUB (FOR REAR AXLE RH)
Prod date: 20110799999907/2011-
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 06
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 06
شماره قطعه:
90310T0008
نام
قطعه: SEAL, OIL (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
90208T0001
نام
قطعه: WASHER(FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
423110K090
نام
قطعه: SHAFT, REAR AXLE, RH
Prod date: 20140820150408/2014-04/2015
Models: TGN26..SCB..GCC
ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 01
Models: TGN26..SCB..GCC
ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 01
شماره قطعه:
90366T0044
نام
قطعه: BEARING (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC
,GEN,IDN,LA,MA,PHL,TH)
QTY: 01
Models: GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC
,GEN,IDN,LA,MA,PHL,TH)
QTY: 01
شماره قطعه:
90310T0008
نام
قطعه: SEAL, OIL (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
90520T0033
نام
قطعه: RING, SNAP (FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
9094202079
نام
قطعه: BOLT, HUB (FOR REAR AXLE RH)
Prod date: 20110799999907/2011-
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 06
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 06
شماره قطعه:
90208T0001
نام
قطعه: WASHER(FOR REAR AXLE SHAFT RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
424310K120
نام
قطعه: DRUM SUB-ASSY, REAR BRAKE
Prod date: 20040820080908/2004-09/2008
Models: KUN35..GEN;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH
QTY: 02
Models: KUN35..GEN;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH
QTY: 02
شماره قطعه:
424210K030
نام
قطعه: CASE, REAR AXLE BEARING, RH
Prod date: 20110720160907/2011-09/2016
Models: KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..A
RL,GCC,GEN,IDN,MA,PHL,SA,TH
QTY: 01
Models: KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..A
RL,GCC,GEN,IDN,MA,PHL,SA,TH
QTY: 01
شماره قطعه:
90301T0043
نام
قطعه: RING, O (FOR REAR AXLE BEARING CASE RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
424210K030
نام
قطعه: CASE, REAR AXLE BEARING, RH
Prod date: 20110720160907/2011-09/2016
Models: KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..A
RL,GCC,GEN,IDN,MA,PHL,SA,TH
QTY: 01
Models: KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..A
RL,GCC,GEN,IDN,MA,PHL,SA,TH
QTY: 01
شماره قطعه:
90301T0043
نام
قطعه: RING, O (FOR REAR AXLE BEARING CASE RH)
Prod date: 20110799999907/2011-
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
Models: GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PH
L,SA,TH
QTY: 01
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424230K020
نام
قطعه: RETAINER, REAR AXLE BEARING, INNER RH
Prod date: 20130820160908/2013-09/2016
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
Models: KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN;KUN15..PHL..IV3;KUN10,15,25,TGN10,16
..IDN,TH
QTY: 02
شماره قطعه:
424410K041
نام
قطعه: DEFLECTOR, BRAKE DRUM OIL RH
Prod date: 20110799999907/2011-
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 01
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 01
شماره قطعه:
424410K041
نام
قطعه: DEFLECTOR, BRAKE DRUM OIL RH
Prod date: 20110799999907/2011-
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 01
Models: GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH
QTY: 01
شماره قطعه:
4244355020
نام
قطعه: GASKET, BRAKE DRUM OIL DEFLECTOR, RH
Prod date: 20040820081208/2004-12/2008
Models: KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26
,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..
(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB
,XTR)..(ARL,GEN,LA,PHL,TH)
QTY: 01
Models: KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26
,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..
(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB
,XTR)..(ARL,GEN,LA,PHL,TH)
QTY: 01
شماره قطعه:
4244355020
نام
قطعه: GASKET, BRAKE DRUM OIL DEFLECTOR, RH
Prod date: 20040820081208/2004-12/2008
Models: KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26
,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..
(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB
,XTR)..(ARL,GEN,LA,PHL,TH)
QTY: 01
Models: KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26
,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..
(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB
,XTR)..(ARL,GEN,LA,PHL,TH)
QTY: 01
شماره قطعه:
4244435050
نام
قطعه: GASKET, BRAKE DRUM (FOR REAR AXLE)
Prod date: 20010899999908/2001-
Models: KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167
,172
QTY: 02
Models: KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167
,172
QTY: 02
شماره قطعه:
4351771010
نام
قطعه: ROTOR, SKID CONTROL, REAR
Prod date: 20110720160907/2011-09/2016
Models: KUN25..SCB..SA;TGN16..4FC..SR;KUN25..DCB..5F..PKN;TGN16..SCB..(GCC,GEN);KUN25..LHD
..DCB..DLX..SA;KUN35..DCB..DLX..(CO,SA);TGN16..DCB..DLX..(GCC,GEN);KUN15,35..(THDC
B,XTR)..GEN;KUN15,TGN36..SCB..(DCR,HTWC)..(LA,TH);TGN26..LHD..DLX..HTWC..(GCC,GEN,
LA,SA);KUN25..(DCB,SCB,THDCB,XTR)..(CO,GCC,GEN);KUN10,15,26,LAN15,25,35,TGN10,11,1
5..(DCB,SCB,THDCB)..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA)
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 02
Models: KUN25..SCB..SA;TGN16..4FC..SR;KUN25..DCB..5F..PKN;TGN16..SCB..(GCC,GEN);KUN25..LHD
..DCB..DLX..SA;KUN35..DCB..DLX..(CO,SA);TGN16..DCB..DLX..(GCC,GEN);KUN15,35..(THDC
B,XTR)..GEN;KUN15,TGN36..SCB..(DCR,HTWC)..(LA,TH);TGN26..LHD..DLX..HTWC..(GCC,GEN,
LA,SA);KUN25..(DCB,SCB,THDCB,XTR)..(CO,GCC,GEN);KUN10,15,26,LAN15,25,35,TGN10,11,1
5..(DCB,SCB,THDCB)..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA)
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
QTY: 02
